    • 제품소개

    MI 711 시리즈

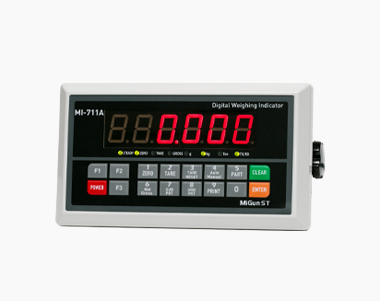

    • MI 711A

      표준형

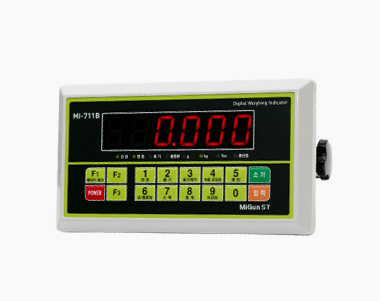

    • MI 711B

      충전 밧데리형

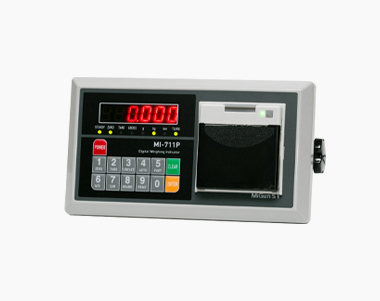

    • MI 711P

      프린트 내장형

    제품 특징

    • Platform Scale, Truck Scale, Tank Scale Application
    • RS-232C Serial Interface(Current Loop) 1 Ports Standard Built in
    • ※ MI 711B : RS-232C Serial Interface 1 Ports Standard Built in
    • Power Supply : DC 12V/2A
    • More Powerful For Dust & Water Proof
    • CE Certification
    • Only MI-711P with Small Industial Printer Installation

    사양

    Input Sensitivity 0.45 ㎶/Digit
    Load Cell Excitation DC 5V
    Max.Signal Input Voltage Max. 32mV
    Temperature Coefficient [Zero] ± 20PPM/℃
    [Span] ± 20PPM/℃
    Input Noise ± 0.6 ㎶ P.P
    Input Impedance Over 10mΩ
    A/D Conversion Method Sigma-Delta
    A/D Resolution(Internet) 260,000 Count(18bit)
    A/D Sampling Rate Max. 80 times/sec
    Non-Linerity 0.01% FS
    Display Resolution(External) 1/90,000

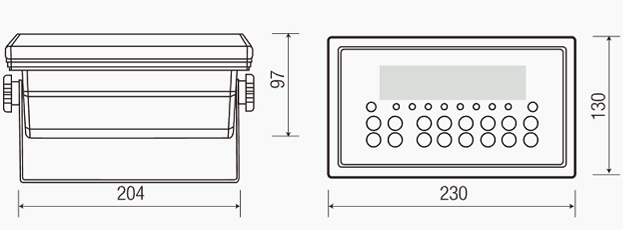

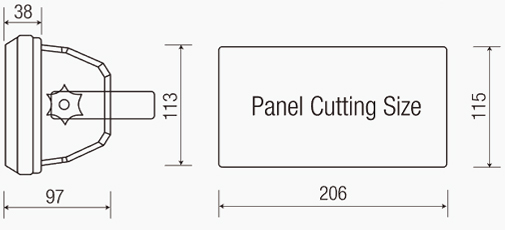

    치수 및 패널 절단 크기

    Unit : mm
