    방폭 타입 (Exd)

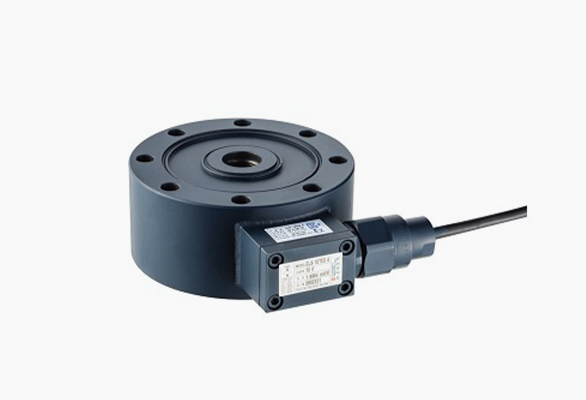

    ELS-Exd

    제품특징

    • Hermetically sealed
    • High reliability against fatigue and side force
    Material
    Paint finished steel
    Capacity A B C D E F G H I J
    0.5 tf 112 46 4 1 38 56 144.5 8 - Ø6.6 97.2 M16x2.0
    1 tf
    2 tf
    3 tf
    5 tf 120 46 4 1 38 56 153.0 8 - Ø9 103.2 M18x1.5
    10 tf 138 60 11 1 38 56 172.0 8 - Ø11 117.6 M24x2.0
    15 tf
    20 tf
    30 tf

    사양

    Max. Capacity kgf 0.5, 1, 2, 3, 5,10, 15, 20, 30 tf
    Rated output mV/V 2.0 ± 0.005
    Zero balance mV/V 0.0 ± 0.03
    Combined error %RO 0.05
    Repeatability %RO 0.02
    Creep (30min.) %RO 0.03
    Temperature effect on
    Zero value %RO/10℃ 0.03
    Output value %RO/10℃ 0.03
    Excitation
    Recommended V 10
    Maximum V 15
    Resisitance
    Input Ω 350 ± 3.5
    Output Ω 350 ± 3.5
    Insulation MΩ ＞ 2,000
    Compensated temp. range ℃ -10 ~ +40
    Operating temp. range ℃ -20 ~ +80

    * 표를 가로로 드래그 해서 확인하세요.

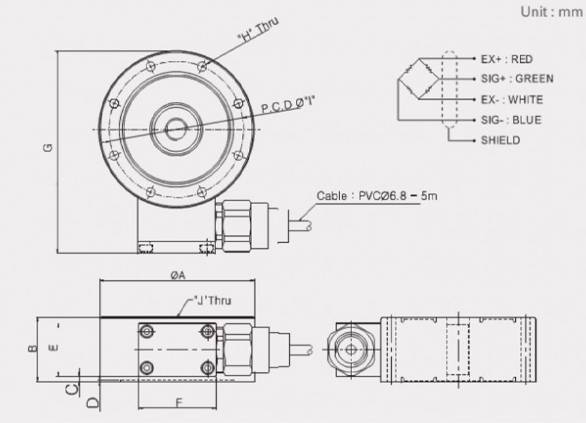

    제품 치수
